How to use Calcpad with Notepad++

CalcpadFebruary 27, 2022February 27, 2022Generalcode, editor, Notepad++, programming

Notepad++ is one of the most popular and free text/code editors. It supports many different programming and scripting languages. You can also edit HTML, XML, CSS, JSON and other types of files. Currently, its text editing capabilities significantly exceeds those of the Calcpad own editor. Some features that worth mentioning are:

multiple file tabs;
predefined and custom styles;
advanced search/replace capabilities;
column editor;
auto completion;
bracket matching;
line operations/sorting;
tab/white space management;
content folding, etc.

And and last but not least – syntax highlighting. Unfortunately, the Calcpad language is not natively supported by Notepad++. However, there is an option to add a custom language with user defined syntax (UDL). Then, you can export it as an xml file and import it everywhere else.

The good news is that we have already created the required language definition files, so you can use them to write Calcpad programs with Notepad++.

To use Notepad++ as Calcpad code editor you need to the following:

Download and install Notepad++ from the following link:
https://notepad-plus-plus.org
Download the Calcpad language definition files:
https://calcpad.eu/download/Notepadpp.zip
Unzip the archive in the preferred folder. You will find two files inside:
– Notepad++.xml – for light mode and
– Notepad++dark.xml – for dark mode.
Start Notepad++. Click the “Language” menu, then “User defined language” and “Define your language…”
Click the “Import…” button in the dialog that will appear.
Browse for the one of the xml files above and click “Open“.

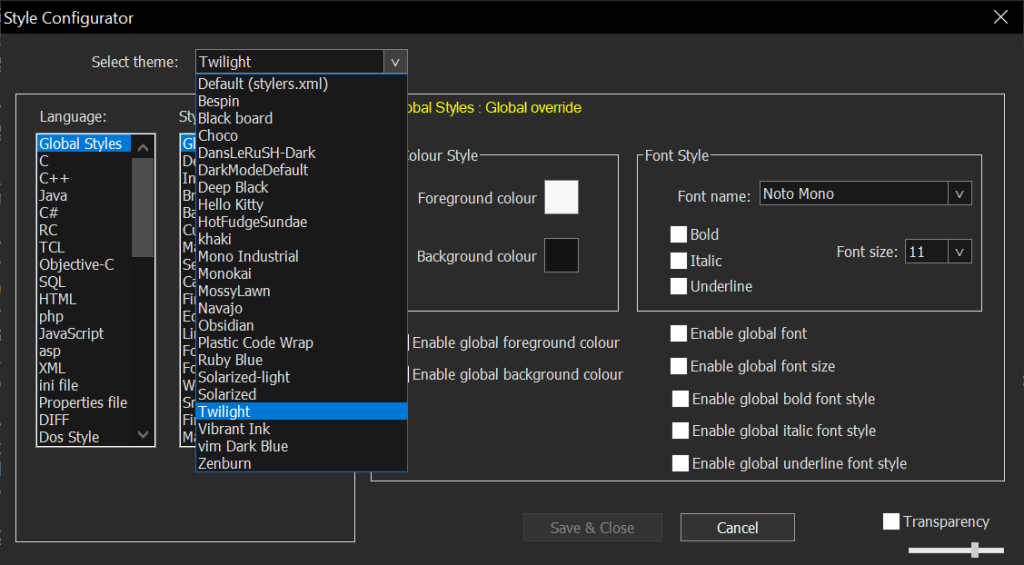

From now on, each time you open a .cpd file, it will be automatically displayed with the Calcpad syntax highlighting. For best results with the dark theme, select the appropriate style from the “Style Configurator” dialog.

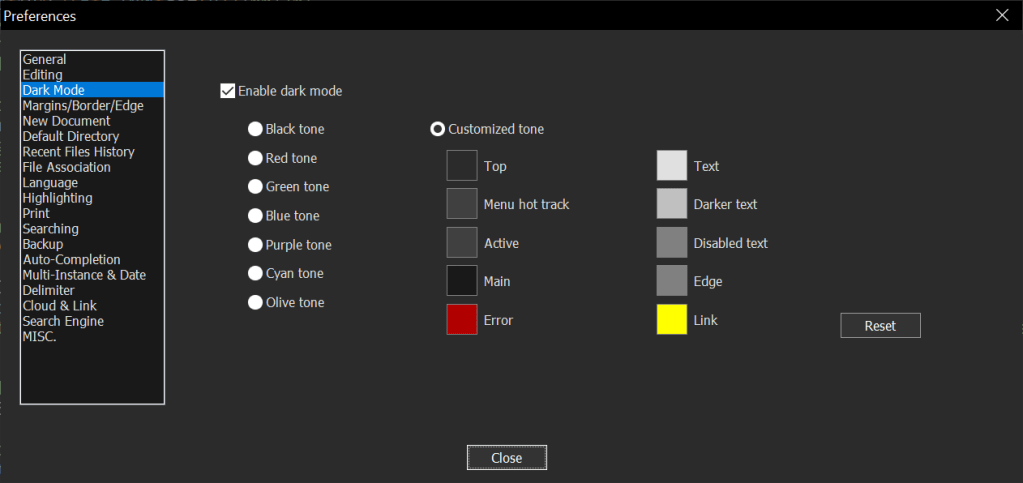

You can find it in the “Settings” menu. For example, a good option is the Twillight theme. You can also set a nice monotype font, such as “Noto Mono“, “Liberation Mono“, “Source Code Pro“, “Consolas“. etc. You can also make the whole interface t dark, by checking “Enable dark mode” in the “Preferences” dialog from the same menu.

You can also make possible to run the Calcpad programs directly from inside the Notepad++ editor. For that purpose, you will have to install the Franco Stellari’s RunMe plugin for Notepad++. You can find detailed instructions in this file: install.txt. It will add a small button at the end of the Notepad++ toolbar . Click the button or press Shift+F5 to run the current program.

Published by Calcpad

Hi, my name is Ned. I am a structural engineer with over 20 years of experience in the design of nuclear and industrial facilities, factories, residential and public buildings. I am a fan of engineering, mathematics and computer programming. I spend a lot of time for developing of useful tools that help structural design. View more posts

2 thoughts on “How to use Calcpad with Notepad++”

Thanks for highlighting file!
But opening file in new instance of Calcpad by Shfit+F5 is not enough 😦
How to reload file within Calcpad from Notepad++ without restarting by one button:

How to reload file within Calcpad without restarting

Notepad++

Install https://github.com/guilryder/clavier-plus
Create file:
C:\my-cli\npp-run-calcpad.bat:

"%SystemRoot%\System32\chcp.com" 65001 > nul
"%SystemRoot%\System32\tasklist.exe" | "%SystemRoot%\System32\find.exe" "Calcpad.exe" || ("%programfiles%\Clavier\Clavier.exe /sendkeys  "[{Focus,10,*Notepad++}][Ctrl+S]" & timeout 1 & start "" "%programfiles%\Calcpad\Calcpad.exe" "%~1" & exit)
"%programfiles%\Clavier\Clavier.exe" /sendkeys "[{Focus,10,*Notepad++}][Ctrl+S][{Copy,%~1}][{Wait,10}][{Focus,10,Calcpad 5.*}][{Wait,10}][Alt][{Wait,10}][Down][{Wait,10}][Enter][{Wait,10}][Right][{Wait,10}][Enter][{Wait,10}][Ctrl+Z][{Wait,10}][Ctrl+Z][{Wait,10}][Ctrl+O][{Wait,10}][Ctrl+V][{Wait,10}][Enter][{Wait,200}][{Focus,200,*Notepad++}]"

Change shortcuts.xml inside Notepad++ folder:

<?xml version="1.0" encoding="UTF-8" ?>
<NotepadPlus>
    <InternalCommands />
    <Macros>
        <Macro name="Trim Trailing Space and Save" Ctrl="no" Alt="yes" Shift="yes" Key="83">
            <Action type="2" message="0" wParam="42024" lParam="0" sParam="" />
            <Action type="2" message="0" wParam="41006" lParam="0" sParam="" />
        </Macro>
    </Macros>
    <UserDefinedCommands>
        <Command name="Get PHP help" Ctrl="no" Alt="yes" Shift="no" Key="112">https://www.php.net/$(CURRENT_WORD)</Command>
        <Command name="Wikipedia Search" Ctrl="no" Alt="yes" Shift="no" Key="114">https://en.wikipedia.org/wiki/Special:Search?search=$(CURRENT_WORD)</Command>
        <Command name="Open selected file path in new instance" Ctrl="no" Alt="yes" Shift="no" Key="117">$(NPP_FULL_FILE_PATH) $(CURRENT_WORD) -nosession -multiInst</Command>
        <Command name="CalcPad" Ctrl="no" Alt="no" Shift="no" Key="120">C:\my-cli\npp-run-calcpad.bat &quot;$(FULL_CURRENT_PATH)&quot;</Command>
    </UserDefinedCommands>
    <PluginCommands />
    <ScintillaKeys>
        <ScintKey ScintID="2469" menuCmdID="42010" Ctrl="yes" Alt="no" Shift="yes" Key="68" />
    </ScintillaKeys>
</NotepadPlus>

NOTE!!! It runs by F9 now (Key="120") – you can change it from menu Run -> Modify Shortcut/Delete command
Remove RunMe plugin from Notepad++ if you don’t use it for other cases.

CudaText

Install https://github.com/guilryder/clavier-plus
Create file:
C:\my-cli\cudatext-run-calcpad.bat:

"%SystemRoot%\System32\chcp.com" 65001 > nul
"%SystemRoot%\System32\tasklist.exe" | "%SystemRoot%\System32\find.exe" "Calcpad.exe" || (start "" "%programfiles%\Calcpad\Calcpad.exe" "%~1" & exit)
"%programfiles%\Clavier\Clavier.exe" /sendkeys "[{Copy,%~1}][{Wait,10}][{Focus,10,Calcpad 5.*}][{Wait,10}][Alt][{Wait,10}][Down][{Wait,10}][Enter][{Wait,10}][Right][{Wait,10}][Enter][{Wait,10}][Ctrl+Z][{Wait,10}][Ctrl+Z][{Wait,10}][Ctrl+O][{Wait,10}][Ctrl+V][{Wait,10}][Enter][{Wait,200}][{Focus,200,*Notepad++}]"

Install plugin “External Tools”
Add tool with Tools -> Config… -> Add…:

Name: cudatext-run-calcpad.bat
File name: C:\my-cli\cudatext-run-calcpad.bat
Parameters: {FileName}
Initial folder: {FileDir}
Lexers: Calcpad
Save before: Current document
Hotkey: F9
Capture output: Ignore

view raw

Calcpad and Notepad++.md

hosted with ❤ by GitHub

LikeLike

hk457 says:

October 13, 2022 at 10:58 am

Hello, i tried to do the same as you with clavier+ an npp
unfortunately it seems like clavier doesn´t focus on Calcpad 5.*
The focus does work for NPP with *Notepad++

I’ve installed Version 5.8.7 Calcpad and Version 11.2.1.0
## I put a video for you here:
´´´
https://drive.google.com/file/d/1okwVwaeu825xwtK2jwbnf56qGzhQvJip/view?usp=sharing
´´´

LikeLike
